11.8 400 Meter Truck Mounted Water Well Drilling Rig Drilling Rig For Water Well DTH Drilling Rig

1 Set
MOQ
$133,000.00(>=1 Sets)
Price
11.8 400 Meter Truck Mounted Water Well Drilling Rig Drilling Rig For Water Well DTH Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works , Energy & Mining
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig, Water Well Drill Rig
Power Type: Diesel
Usage: Water Well
Voltage: /
Dimension(L*W*H): 12700*2500*4000mm
Weight: 19340 KG
Warranty: 1 Year
Marketing Type: Ordinary Product
Machinery Test Report: Not Available
Video Outgoing-inspection: Not Available
Warranty Of Core Components: 1 Year
Core Components: Pump, Engine
Key Selling Points: Competitive Price
Drilling Diameter: 300mm, 450mm, 600mm
Drilling Depth: Max.400m
Drilling Depth(M): 80, 400
Cylinder Lifting Force (kN/MPa): 201/20
Cylinder Feed Force (kN/MPa): 53/10
Effective Height Of Drilling Tower (m): 11.8
Drill Tower Load Capacity (kN): 260
Kelly(mm): 108*108*7500
Mud Pump: BW850
Truck Chassis: Dongfeng 6*4
Transport State (mm): 12700*2500*4000
Local Service Location: None
After-sales Service Provided: Video Technical Support, Field Installation, Commissioning And Training
Certification: ISO9001
Basic Infomation
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Supply Ability: 20 Set/Sets per Month
Product Description
Product Description

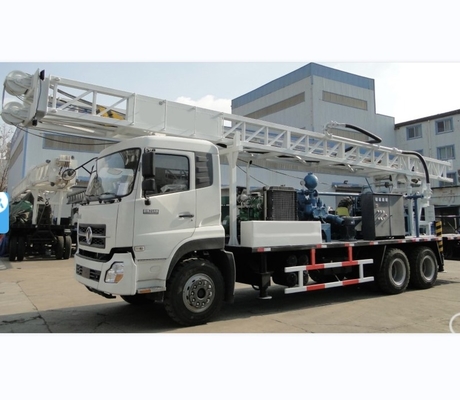

DF400 Truck Mounted Water Well Drilling Rig is a direct circulation rotary drilling rig. It is equipped with the Dongfeng 6×4 special truck chassis and is equipped with 11.00R20 steel wire off-road tread tires, which has good off-road performance; the rig adopts Yuchai YC6J220-46 diesel engine, and the emission standard meets the national IV emission.

The hydraulic system of the drilling rig adopts an open system design, and the hydraulic control system of getting on and off is separated to avoid misoperation; the hydraulic system is equipped with an oil temperature heater in winter and an oil temperature radiator in summer to adapt to different seasons and regions for heating and cooling of hydraulic oil. The drilling rig adopts hydraulic cylinder for feeding and lifting, stepless speed adjustment, and automatic drilling technology can be realized during drilling. It can automatically pressurize drilling under the weight of the drill pipe and drilling tool. It can also realize hydraulic control of drilling speed according to different geological conditions. The drilling rig can realize automatic pressurized drilling during drilling, adjust different pressures when drilling in different hard layers, and visually see the drilling pressure through the pressure gauge, and at the same time adjust the drilling speed;The drilling rig can realize the rapid drilling technology during drilling, that is, it can manually control the rapid drilling when drilling into the soft soil layer, realize different drilling speeds according to different stratum structures, and maximize the efficiency of drilling operations.

Detailed Images
Technical Parameter
Drilling depth (m)
400
Cylinder lifting force (kN/MPa)
201/20
Cylinder feed force (kN/MPa)
53/10
Main winch lifting force (single rope) (kN)
40
Main hook lifting force (2 wheels) (kN)
160
Tool hoisting force (single rope) (kN)
20
Lifting force of tool hook (single wheel) (kN)
20
Through hole diameter of turntable (mm)
500
Rotation speed of turntable (r/min)
97; 85; 50; 32; 19; 11
Turntable torque (kN.m)
2.96; 3.38; 5.82; 9; 15.5; 27
Effective height of drilling tower (m)
11.8
Drill tower load capacity (kN)
260
Kelly(mm)
108×108×7500
Diesel Engine
Model
Cummins 6BTA5.9-C130
Type
Water cooled four stroke turbocharged
Rated power
97kW
Rated rotating speed
2200rmp
Max. output torque
560Nm/1500rmp
Mud Pump
model
BW850
Bore size (mm)
150
Displacement (L/min)
850, 600
Pump pressure (MPa)
2, 3
Truck Chassis
Chassis model
DFS1251GL18
Chassis form
6×4
Engine
Model
YC6J220-46
Type
Water-cooled four-stroke supercharged and inter-cooled
Rated power (kW)
162
Rated speed (rpm)
2500
Working status (mm)
10900×3050×14000
Transport state (mm)
12700×2500×4000
Related Products
Company Introduction
Service
Delivery Time:
Based on order quantity, normally it takes 30 days for production.Only 2 or 3 days if we have stock on your request size.
Quality Control:
We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
After Services:
echnical Support will be available in any time. We could provide the professional suggestion for you.
EX:
1. Select the right most suitable products.
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose,. choosing the different body type
